What Is Solder Paste Inspection
2024-03-12
SPI is a specialized process that evaluates/inspects the quality of solder paste deposits on PCBs, also known as solder paste inspection. In most cases, the reason behind the improper functioning of the PCB is because of an improper solder paste printing, which ensures that the solder paste is properly deposited on the board with no faults. Thus, solder paste inspection is an important technique that ensures that costs are kept as low as possible by detecting faults during the solder printing stage of the production line as soon as possible. For a proper electrical connection to be maintained, solder paste deposition is an integral part of the printing process in order to attach components to a circuit board.
Why Is Solder Paste Inspection Important?
When you are able to use an SPI machine to detect any possible defects in the solder paste application, you can catch mistakes early in the process when you can spot them. If the printing process is adjusted before your PCB has been populated, you may be able to reduce the cost of repair if the PCB needs to be repaired. There is a need for the machine to measure the solder paste feature accurately, not only in terms of length and width, but also in terms of volume, area, and height.
This machine can catch defects early in the process, and it can save time and money. The solder paste must be applied consistently and accurately, and it is critical to detect any problems as soon as possible in order to save time and money. It is possible for you to detect these problems early in the process of creating the PCB by using the technology of measuring the three-dimensional aspects of the solder paste on the PCB. This way, you can make the necessary changes to improve the functionality of the PCB, which in turn will decrease the number of reworks and maximize your profitability.
This machine can catch defects early in the process, and it can save time and money. The solder paste must be applied consistently and accurately, and it is critical to detect any problems as soon as possible in order to save time and money. It is possible for you to detect these problems early in the process of creating the PCB by using the technology of measuring the three-dimensional aspects of the solder paste on the PCB. This way, you can make the necessary changes to improve the functionality of the PCB, which in turn will decrease the number of reworks and maximize your profitability.
Process for Inspecting Solder Paste
The solder paste printing stage stands as a pivotal aspect within the surface mount assembly process. Identifying defects early significantly mitigates correction costs—typically, a post-reflow fault incurs a rework expense tenfold greater than pre-reflow detection, with an additional tenfold cost escalation after testing.
Ensuring precise deposition of solder paste devoid of defects and ensuring repeatability necessitates a robust inspection approach. With components shrinking in size and complexity, controlling solder paste printing becomes increasingly intricate. Hence, it's prudent to thoroughly inspect each printed PCB before commencing component placement.
Although many solder paste printing machines feature 2D solder inspection, which has been in use for an extended period, its capability in area coverage and shorts inspection is limited. This system lacks the ability to verify anticipated solder paste volume or deposit shape.
Two primary methods exist for inspecting printed PCBs: 2D and 3D. Below are exemplars:

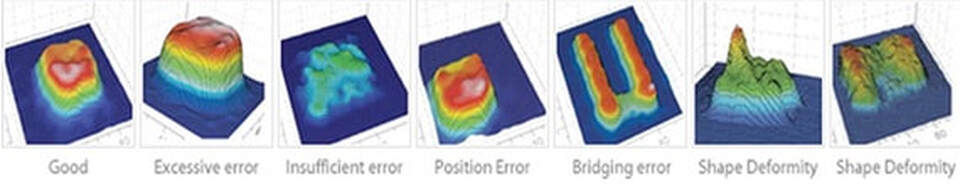

3D solder paste inspection not only verifies area coverage and shorts but also accurately measures solder paste deposit shapes and volumes. The following examples illustrate its capabilities:
Considerations
Here are the key aspects to consider when inspecting 3D solder paste:
1.Training for Programming/Operators
Keeping pace with evolving software is crucial for efficient programming on 3D inspection machines. Recent software versions feature user-friendly interfaces and wizards, streamlining programming steps. Prior versions, often complex and time-consuming, risked rendering the machine as merely a conveyor. Obtaining accurate data representing the stencil and expected solder paste deposits is vital. Stencil manufacturers modify gerber data to match specifications, ensuring seamless programming of solder paste inspection machines.
Keeping pace with evolving software is crucial for efficient programming on 3D inspection machines. Recent software versions feature user-friendly interfaces and wizards, streamlining programming steps. Prior versions, often complex and time-consuming, risked rendering the machine as merely a conveyor. Obtaining accurate data representing the stencil and expected solder paste deposits is vital. Stencil manufacturers modify gerber data to match specifications, ensuring seamless programming of solder paste inspection machines.
2.Inspection Speed and Cycle Time
In high-speed production lines, the inspection speed of SPI machines is paramount. Machines specify inspection speed in cm2/sec. It's imperative to select a machine capable of matching the process time of the largest board. Enlarging the field of view (FOV) can enhance inspection speed.
In high-speed production lines, the inspection speed of SPI machines is paramount. Machines specify inspection speed in cm2/sec. It's imperative to select a machine capable of matching the process time of the largest board. Enlarging the field of view (FOV) can enhance inspection speed.
3.Accuracy and Repeatability
The cost variation of solder paste inspection machines is often attributed to sensor and lighting technology. Moiré pattern projection accurately measures solder paste deposit height using lateral shift projection lines. However, repeatability may be compromised by a single projector, causing shadows and inaccuracies. Multiple projectors improve accuracy but increase machine cost. "Warp compensation" feature adjusts board height to maintain accuracy despite bow and twist.
The cost variation of solder paste inspection machines is often attributed to sensor and lighting technology. Moiré pattern projection accurately measures solder paste deposit height using lateral shift projection lines. However, repeatability may be compromised by a single projector, causing shadows and inaccuracies. Multiple projectors improve accuracy but increase machine cost. "Warp compensation" feature adjusts board height to maintain accuracy despite bow and twist.
4.Yield Improvement
3D SPI expedites new product or process introduction by basing displayed data on measurements, not image interpretation. Connecting SPI machines to printers for automatic adjustment enhances efficiency, requiring minimal operator intervention. In the context of Industry 4.0, SPI facilitates real-time process optimization and offers robust SPC analytics.
3D SPI expedites new product or process introduction by basing displayed data on measurements, not image interpretation. Connecting SPI machines to printers for automatic adjustment enhances efficiency, requiring minimal operator intervention. In the context of Industry 4.0, SPI facilitates real-time process optimization and offers robust SPC analytics.
5.User-Friendliness and Data Interpretation
A user-friendly graphical interface maximizes machine utility. Clear visualization of inspection results distinguishes between passed and failed inspections. Excessive paste volume is easily identifiable through color-coded representations. Settings screens allow customization of inspection tolerances for precise control.
A user-friendly graphical interface maximizes machine utility. Clear visualization of inspection results distinguishes between passed and failed inspections. Excessive paste volume is easily identifiable through color-coded representations. Settings screens allow customization of inspection tolerances for precise control.
Solder Paste Inspection Measurement Features
The inspection typically involves the measurement of various features to ensure the quality and reliability of solder joints. Some common measurement features in SPI include:
1.Volume Measurement: SPI systems measure the volume of deposited solder paste to ensure it meets the specifications defined by the PCB design. Accurate volume measurement helps prevent issues like insufficient solder or solder bridges.
2.Height Measurement: SPI machines measure the height of the solder paste deposits. This measurement ensures that the solder paste is evenly distributed across the PCB surface and meets the specified height requirements for proper reflow soldering.
3.Area Coverage: SPI systems analyze the area covered by the solder paste deposits on each pad. This measurement helps ensure that each pad receives an adequate amount of solder paste, preventing issues such as open or insufficient solder joints.
4.Solder Paste Offset: SPI systems measure the offset between the center of each solder paste deposit and the center of the corresponding pad on the PCB. This measurement ensures precise alignment of the solder paste deposits with the pad positions, preventing misalignment issues during reflow soldering.
5.Shape Inspection: SPI systems inspect the shape of solder paste deposits to detect abnormalities such as bridging, tombstoning, or misalignment. Analyzing the shape helps identify potential defects early in the assembly process, enabling prompt corrective actions.
6.Print Registration: SPI machines verify the registration accuracy of solder paste deposits with respect to the PCB pads. This measurement ensures that the solder paste is deposited within the specified tolerance limits, maintaining the integrity of the solder joints.
7.Volume Distribution: SPI systems analyze the distribution of solder paste volume across the PCB surface to identify any variations or inconsistencies. This measurement helps optimize the stencil design and printing process parameters for uniform solder paste deposition.
8.Solder Paste Position: SPI machines measure the position of each solder paste deposit relative to the PCB fiducials or reference points. This measurement ensures accurate placement of solder paste on the PCB, minimizing the risk of assembly defects.
1.Volume Measurement: SPI systems measure the volume of deposited solder paste to ensure it meets the specifications defined by the PCB design. Accurate volume measurement helps prevent issues like insufficient solder or solder bridges.
2.Height Measurement: SPI machines measure the height of the solder paste deposits. This measurement ensures that the solder paste is evenly distributed across the PCB surface and meets the specified height requirements for proper reflow soldering.
3.Area Coverage: SPI systems analyze the area covered by the solder paste deposits on each pad. This measurement helps ensure that each pad receives an adequate amount of solder paste, preventing issues such as open or insufficient solder joints.
4.Solder Paste Offset: SPI systems measure the offset between the center of each solder paste deposit and the center of the corresponding pad on the PCB. This measurement ensures precise alignment of the solder paste deposits with the pad positions, preventing misalignment issues during reflow soldering.
5.Shape Inspection: SPI systems inspect the shape of solder paste deposits to detect abnormalities such as bridging, tombstoning, or misalignment. Analyzing the shape helps identify potential defects early in the assembly process, enabling prompt corrective actions.
6.Print Registration: SPI machines verify the registration accuracy of solder paste deposits with respect to the PCB pads. This measurement ensures that the solder paste is deposited within the specified tolerance limits, maintaining the integrity of the solder joints.
7.Volume Distribution: SPI systems analyze the distribution of solder paste volume across the PCB surface to identify any variations or inconsistencies. This measurement helps optimize the stencil design and printing process parameters for uniform solder paste deposition.
8.Solder Paste Position: SPI machines measure the position of each solder paste deposit relative to the PCB fiducials or reference points. This measurement ensures accurate placement of solder paste on the PCB, minimizing the risk of assembly defects.
