How Vacuum Reflow Technology Transforms Semiconductor Packaging

author: Echo

2026-02-03

Why Void-Free Soldering Matters More Than Ever

In modern semiconductor packaging—especially in high-power devices like IGBT modules, automotive electronics, and advanced IC packaging—solder joint reliability is no longer optional; it is mission-critical.

One of the most persistent and destructive defects in solder joints is voiding—microscopic gas pockets trapped inside the solder. These voids act as thermal barriers and stress concentrators, ultimately leading to reduced heat dissipation, crack propagation, and early failure.

Traditional reflow soldering struggles to eliminate these voids. That’s where vacuum reflow soldering technology fundamentally changes the game.

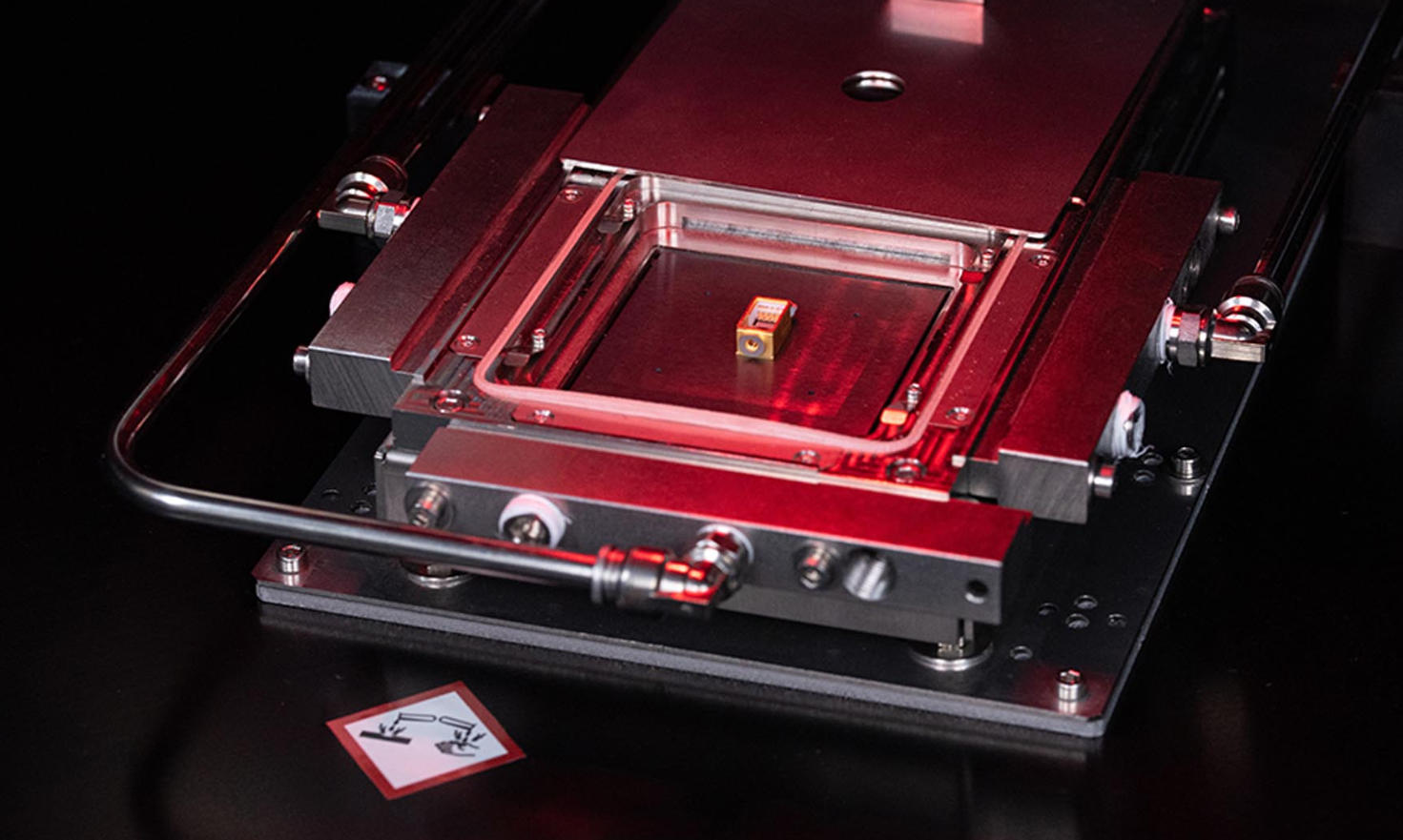

What Is Vacuum Reflow Soldering?

Vacuum reflow soldering is an advanced SMT process that introduces a controlled low-pressure (vacuum) environment during the molten solder phase, enabling trapped gases to escape efficiently.

Compared to conventional atmospheric reflow:

Standard reflow void rate: ~25%

Vacuum reflow void rate: 1%–5% (even <1% in optimized cases)

This drastic reduction is not accidental—it is driven by fundamental physics.

The Core Physics: Why Vacuum Removes Voids

1. Pressure Differential Drives Gas Escape

The key mechanism is pressure difference (ΔP).

When solder melts, gas bubbles (from flux volatilization, moisture, or oxidation reactions) are trapped inside. Under atmospheric pressure:

External pressure ≈ internal bubble pressure

Gas cannot escape easily

Under vacuum:

External pressure drops sharply

Internal pressure remains higher
→ Gas is forced outward

This pressure differential actively pushes bubbles out of the molten solder.

2. Boyle’s Law Expands Bubbles

Vacuum reflow also leverages a fundamental physical principle:

Boyle’s Law: P₁V₁ = P₂V₂

When pressure decreases:

Bubble volume increases dramatically

Larger bubbles are easier to escape

Reducing pressure from 101 kPa to 10 kPa can significantly increase bubble size, enhancing escape probability.

3. Increased Buoyancy Enhances Bubble Removal

As bubbles expand:

Buoyancy force increases (proportional to volume)

Resistance from molten solder decreases (due to improved fluidity)

This creates a favorable condition where:

Bubble buoyancy > solder flow resistance

Result:

Bubbles rise faster

Escape becomes highly efficient

4. Reduced Oxidation Improves Wetting

Vacuum environments also:

Lower oxygen concentration

Reduce oxidation of solder and flux

This leads to:

Better solder wetting

Fewer gas-generating reactions

Lower initial void formation

Step-by-Step Process: How Vacuum Reflow Actually Works

Let’s break down the full thermal + pressure cycle:

1. Heating (Preheat & Soak Stage)

Temperature rises gradually (150–200°C typical)

Flux activates and removes oxides

Volatile gases begin forming

Critical point: gas generation starts here

2. Melting (Reflow Peak Stage)

Solder reaches liquid state (~220–260°C depending on alloy)

Gas becomes trapped in molten solder

This is the void formation stage

3. Vacuum Application (Critical Phase)

At the peak molten state:

Chamber pressure rapidly drops (typically 5–15 mbar)

Gas bubbles expand and escape

This is the core of vacuum reflow technology

4. Vacuum Hold

Pressure is maintained for several seconds

Ensures:

Maximum gas evacuation

Stable solder structure

5. Vacuum Release (Backfill Stage)

Chamber returns to atmospheric or inert gas pressure

Solder surface stabilizes

6. Cooling

Controlled cooling solidifies solder joints

Final structure forms with minimal voids

Pressure Curve Comparison: Conventional vs Vacuum Reflow

Stage	Conventional Reflow	Vacuum Reflow
Heating	Atmospheric pressure	Atmospheric pressure
Melting	Gas trapped	Gas trapped
Critical Phase	No pressure change	Rapid pressure drop
Bubble Behavior	Small, trapped	Expand + escape
Final Void Rate	High (~25%)	Very low (1–5%)

The absence vs presence of pressure drop is the fundamental difference.

Why Vacuum Reflow Is Essential for Semiconductor Packaging

1. Thermal Performance

Voids reduce thermal conductivity:

Poor heat dissipation

Hotspots in power devices

Vacuum reflow:

Improves thermal path continuity

Enables high-power operation

2. Mechanical Reliability

Voids act as stress concentration points:

Crack initiation

Fatigue failure under thermal cycling

Vacuum reflow:

Creates dense solder joints

Enhances mechanical strength

3. Electrical Stability

Voids can:

Increase resistance

Affect signal integrity

Vacuum process ensures:

Uniform current flow

Stable electrical performance

Engineering Insight : Balancing Vacuum and Temperature

From real-world equipment engineering (e.g., HVT-level process design logic), the biggest challenge is:

Balancing vacuum degree with thermal profile

Key trade-offs:

1. Vacuum Level vs Solder Stability

Too low pressure (<5 mbar):

Risk of solder splashing

Too high pressure (>15 mbar):

Ineffective void removal

Optimal range: 5–15 mbar

2. Timing of Vacuum Application

Too early:

Solder not fully molten → no effect

Too late:

Solidification begins → bubbles trapped

Best timing:

During soak-to-peak transition

3. Temperature Uniformity

Poor thermal control leads to:

Uneven melting

Localized voids

High-end systems emphasize:

Multi-zone heating

Precise thermal profiling (PWI < 100%)

Advanced Variants: Beyond Basic Vacuum Reflow

Modern systems may include:

1. Vacuum + Positive Pressure Cycling

Alternating pressure cycles

Further reduces micro-voids

2. Formic Acid / Reducing Atmosphere

Removes oxides chemically

Enhances wetting

3. Hybrid Vacuum + Pressure Cure

Used in advanced semiconductor packaging

Achieves ultra-low void rates (<1%)

Applications: Where Vacuum Reflow Is Critical

Vacuum reflow is widely used in:

Power semiconductors (IGBT, MOSFET)

Automotive electronics

Aerospace systems

Medical devices

High-density packaging (BGA, CSP)

These fields require:

Ultra-low void rate

High thermal reliability

Long lifecycle stability

Conclusion: Why Vacuum Reflow Is the Future of High-Reliability Soldering

Vacuum reflow soldering is not just an incremental improvement—it is a physics-driven breakthrough.

By combining:

Pressure differential

Gas expansion (Boyle’s Law)

Enhanced buoyancy

Reduced oxidation

It transforms solder joints from:

Defect-prone structures
→ into High-density, high-reliability connections

As semiconductor packaging continues to evolve toward higher power density and tighter reliability requirements, vacuum reflow is rapidly becoming a standard rather than an option.
